Trio

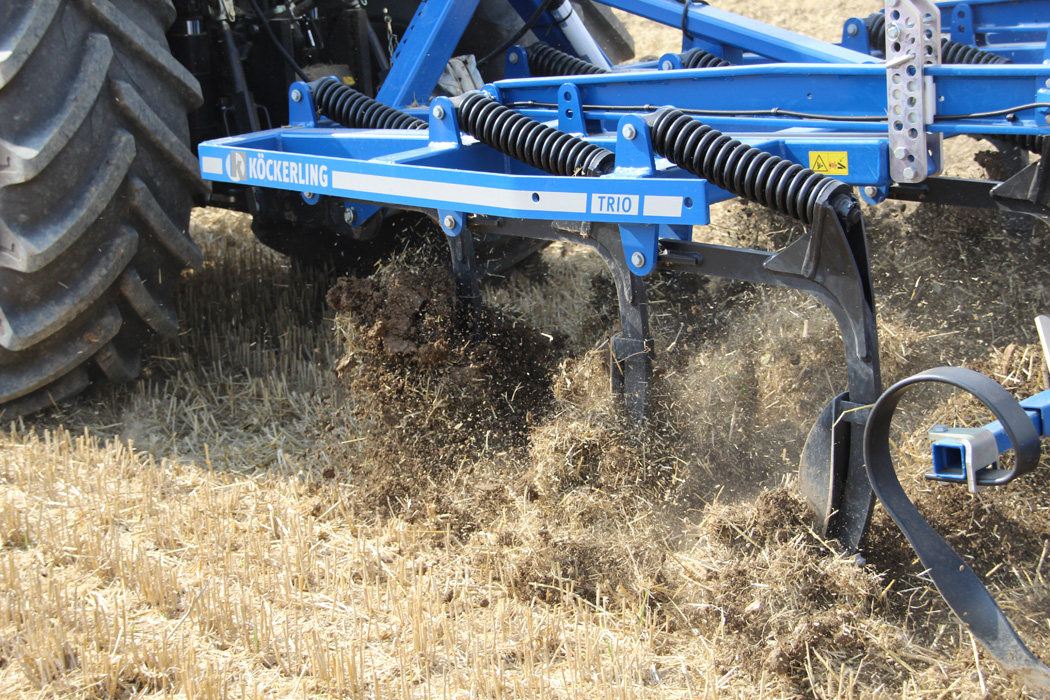

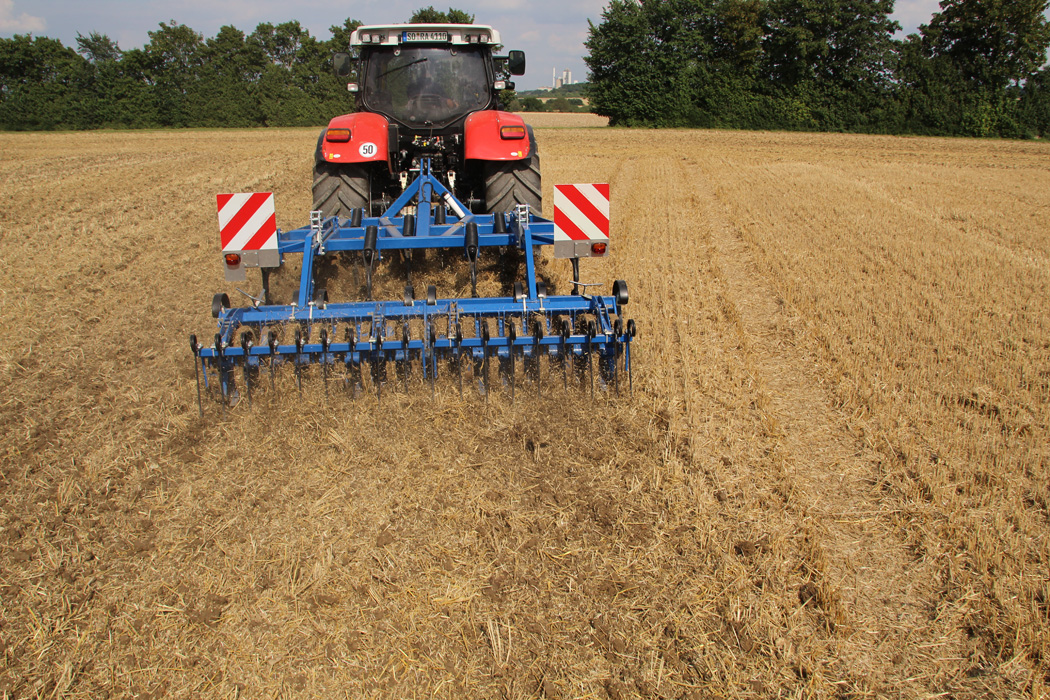

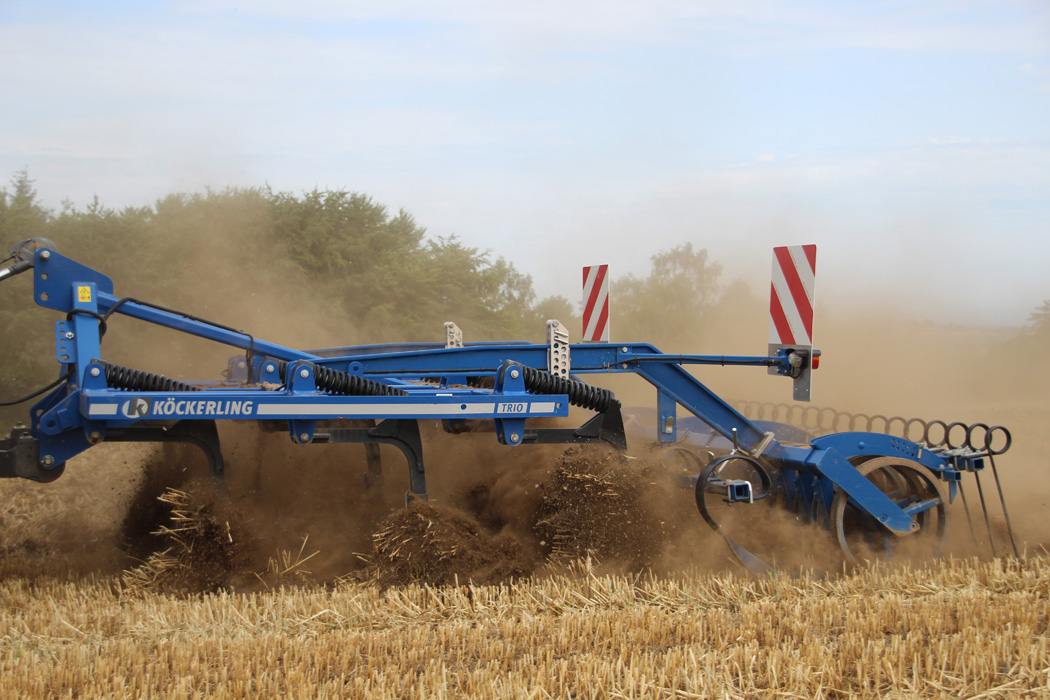

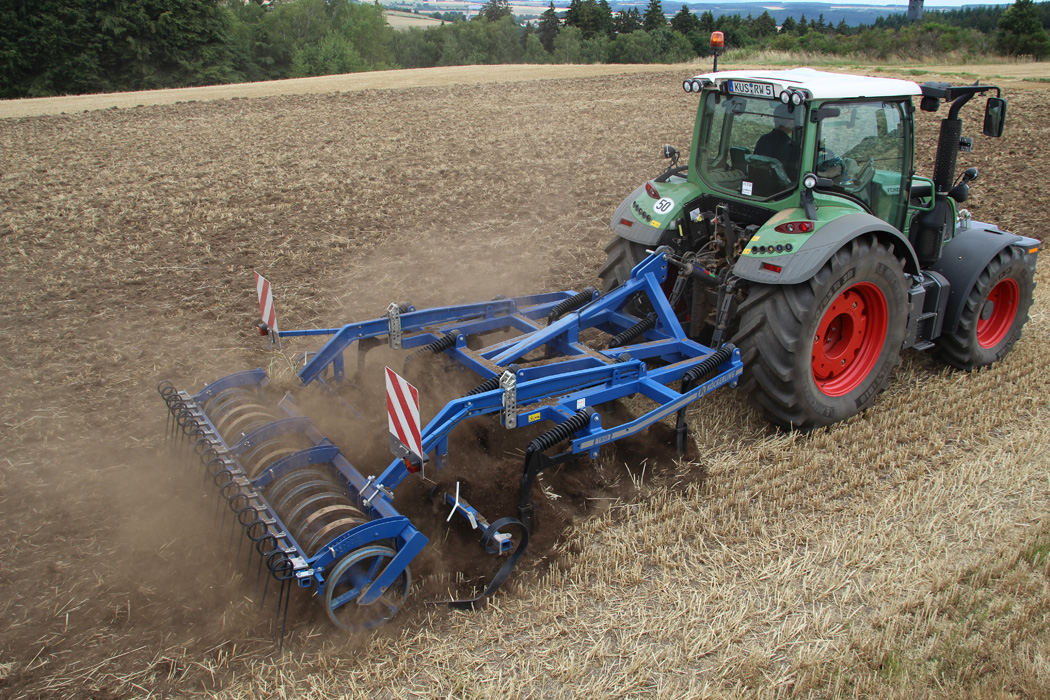

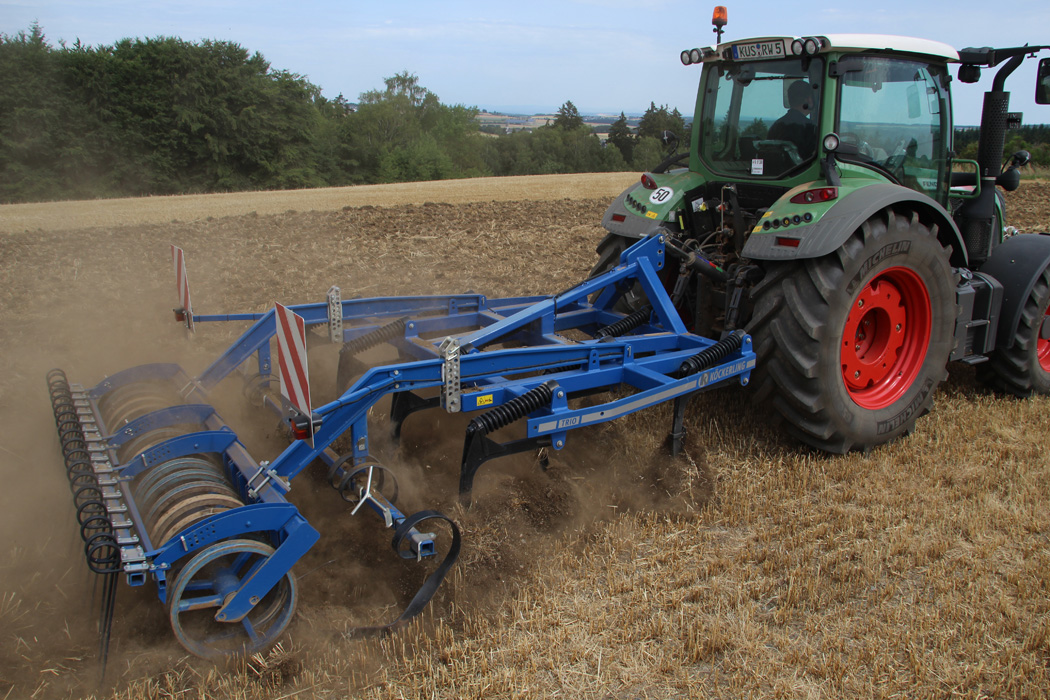

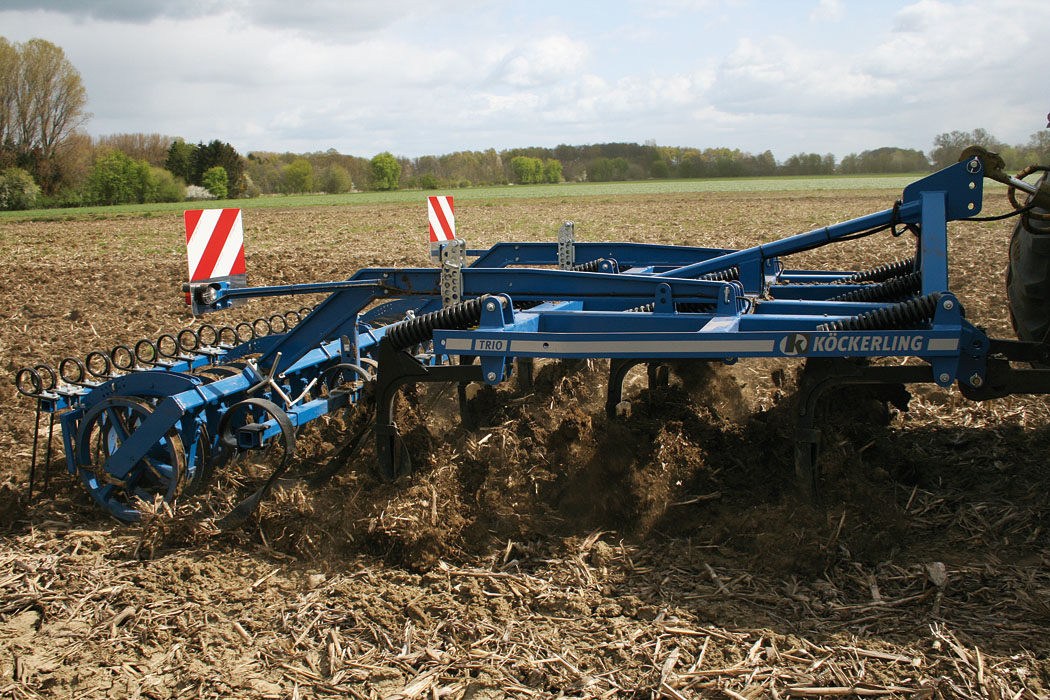

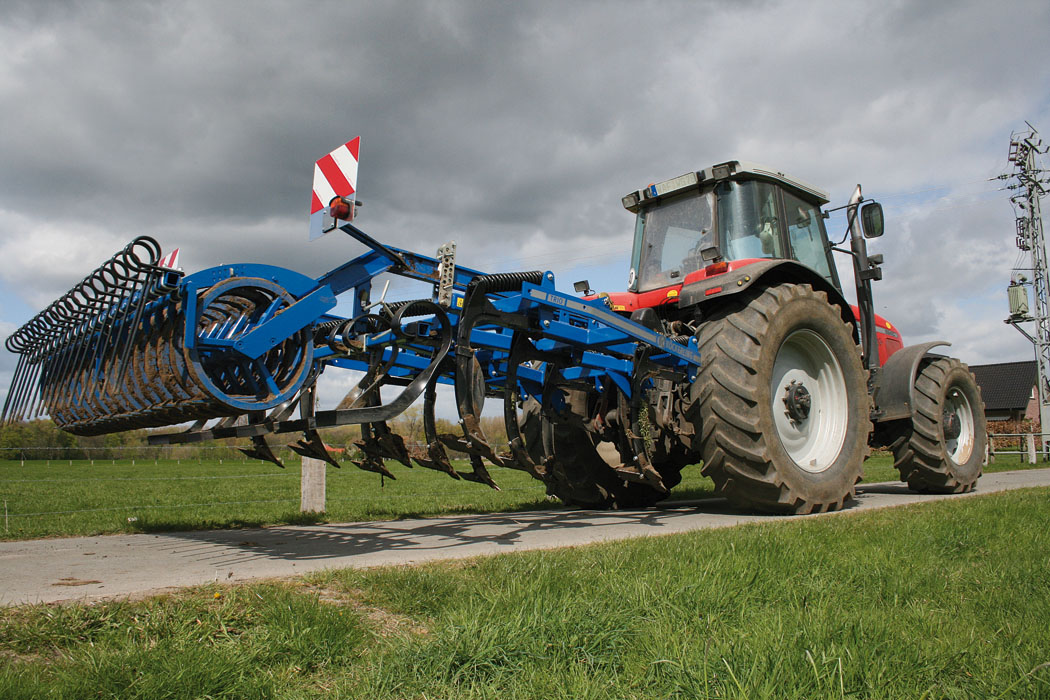

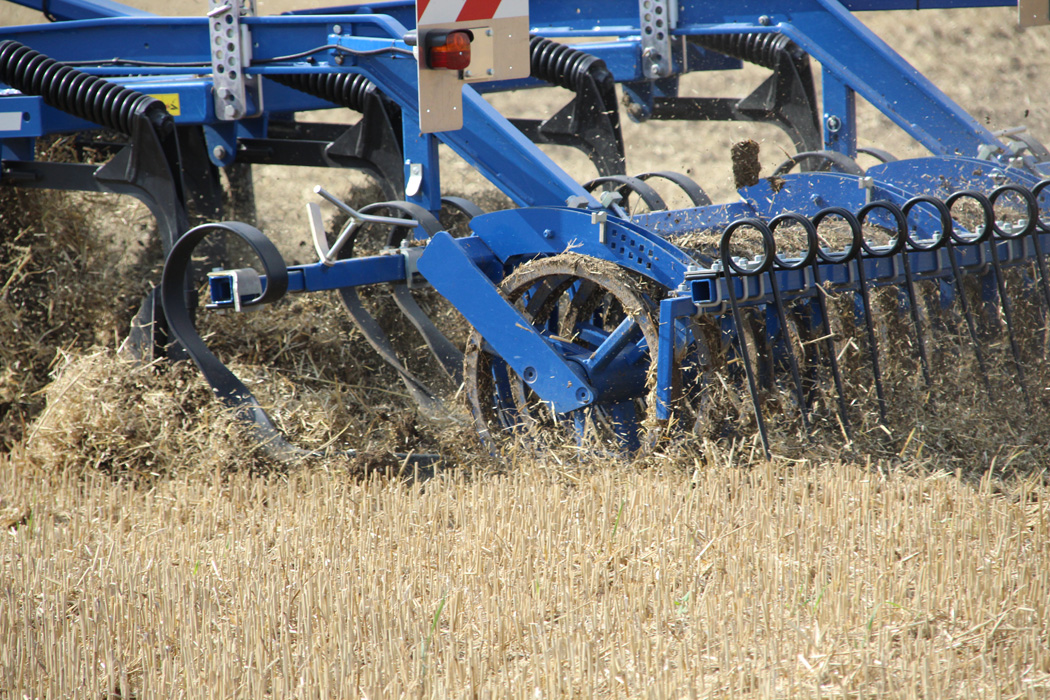

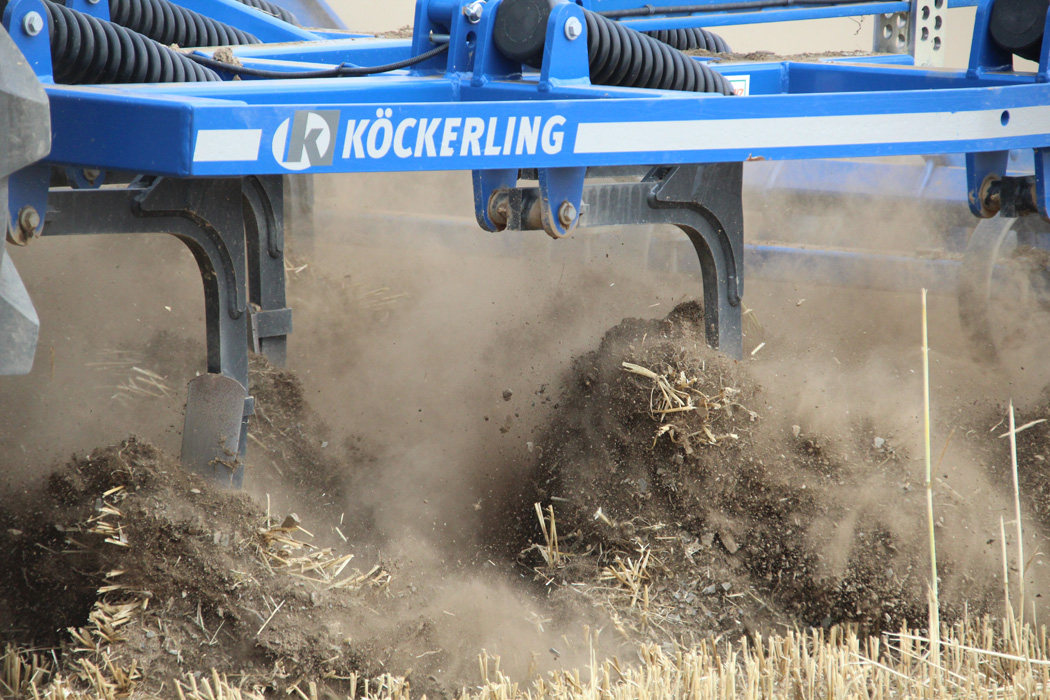

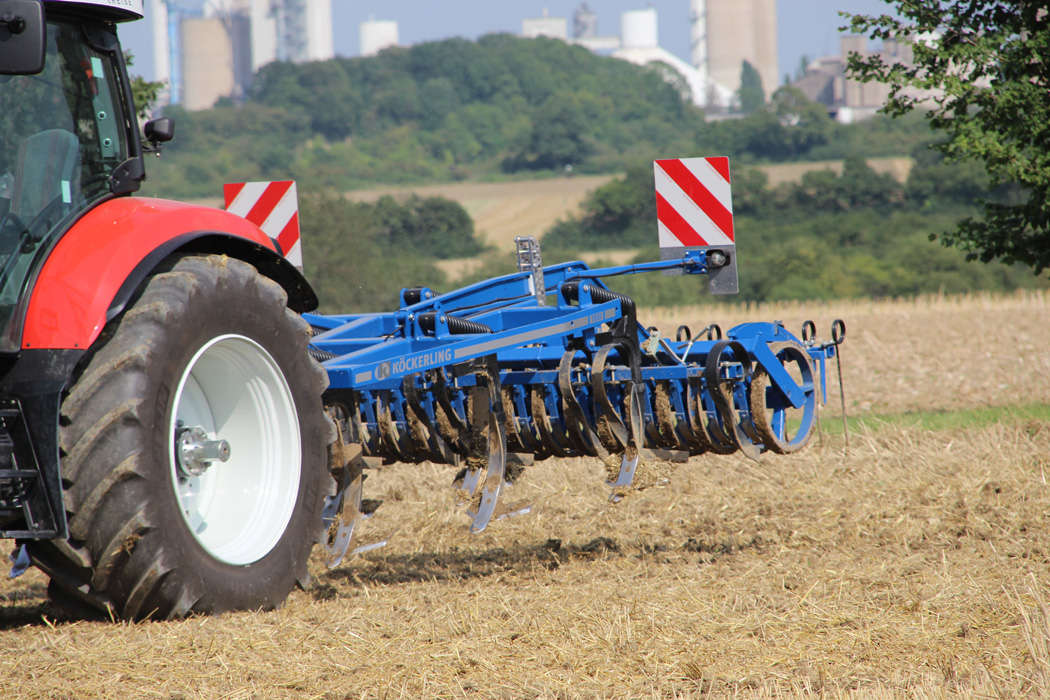

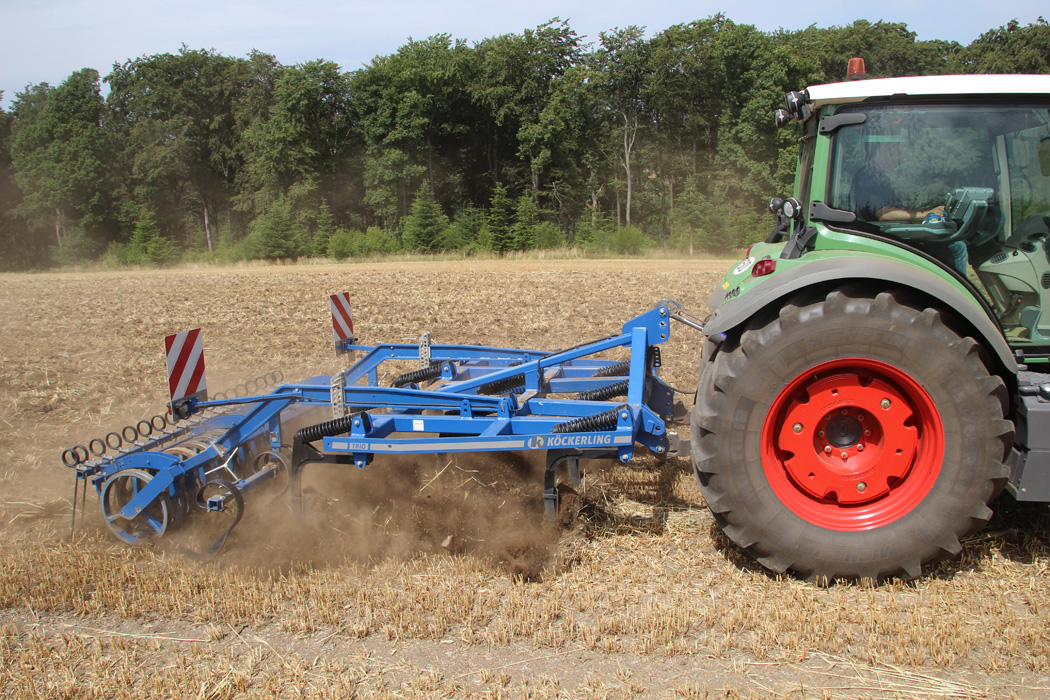

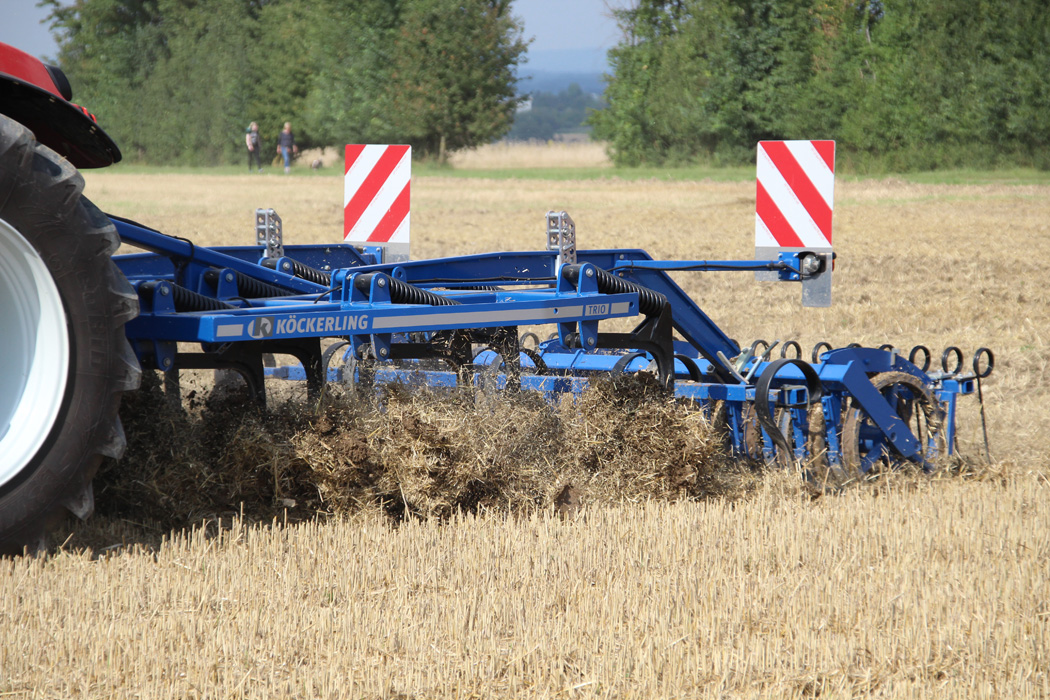

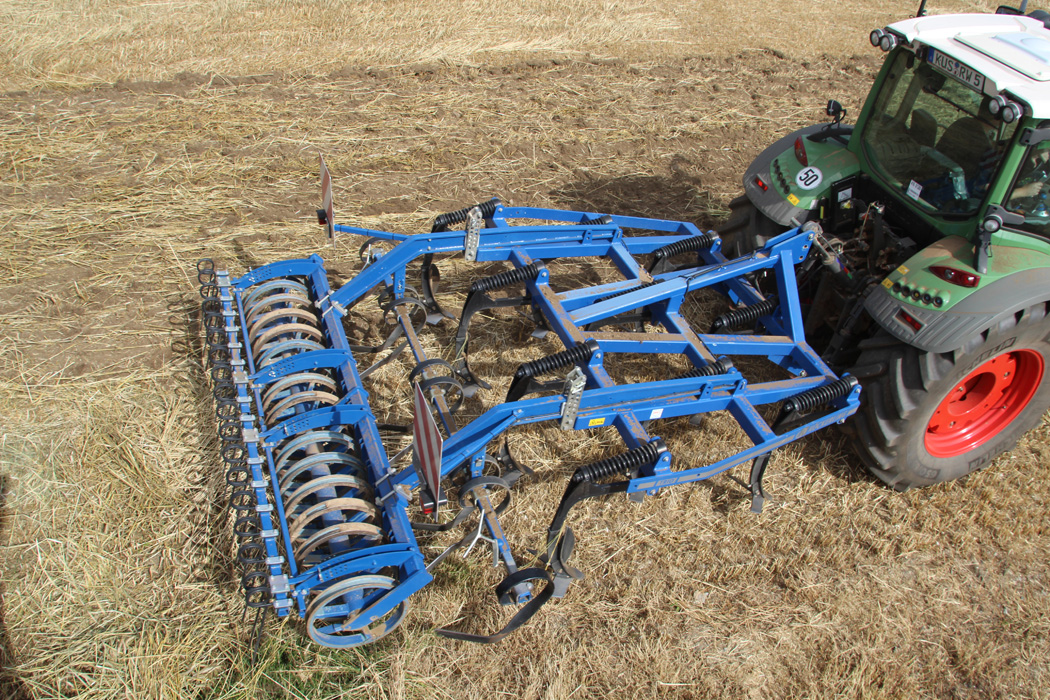

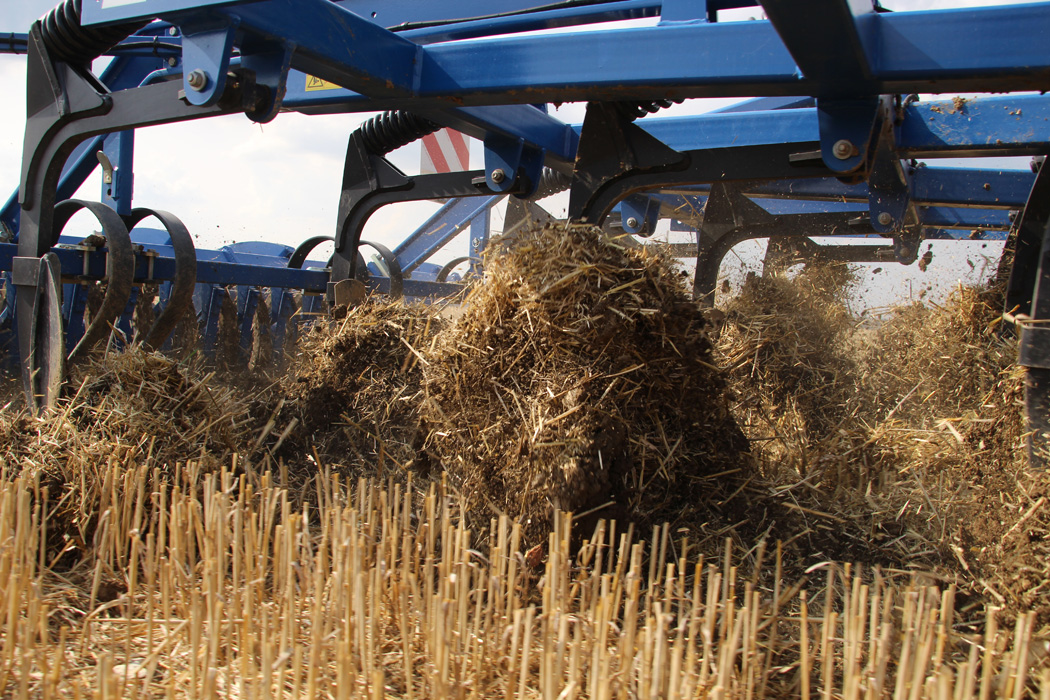

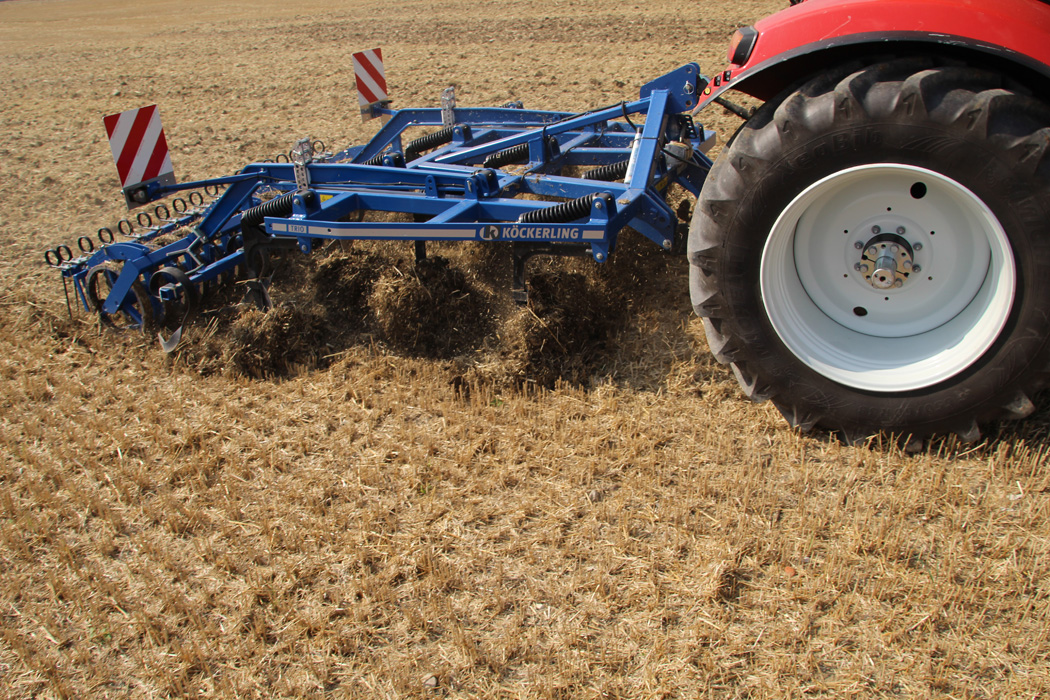

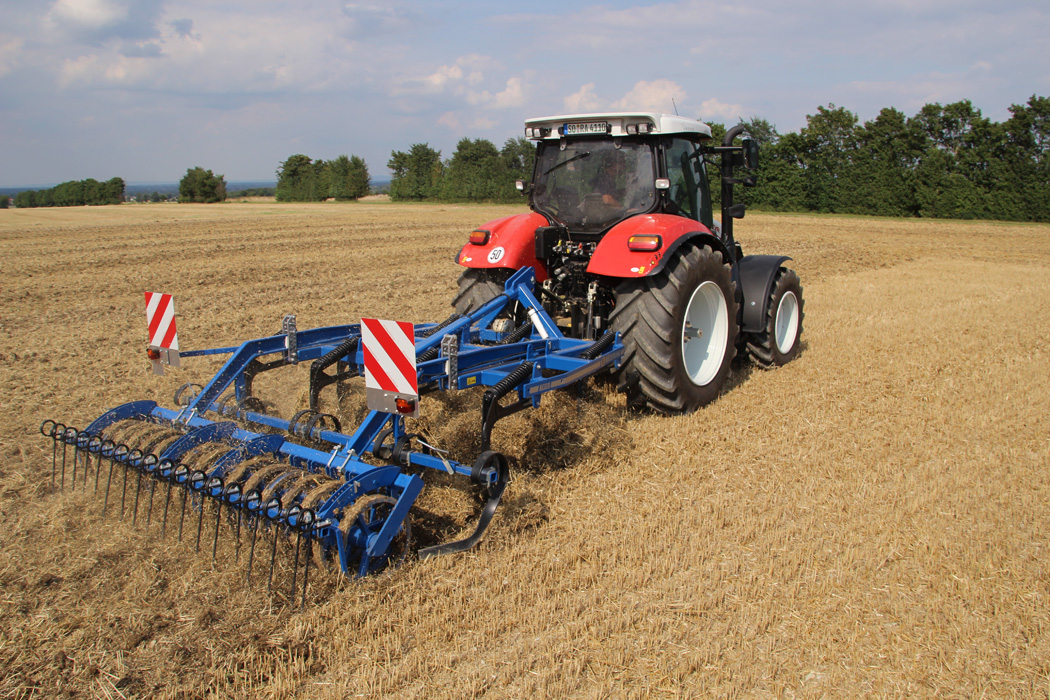

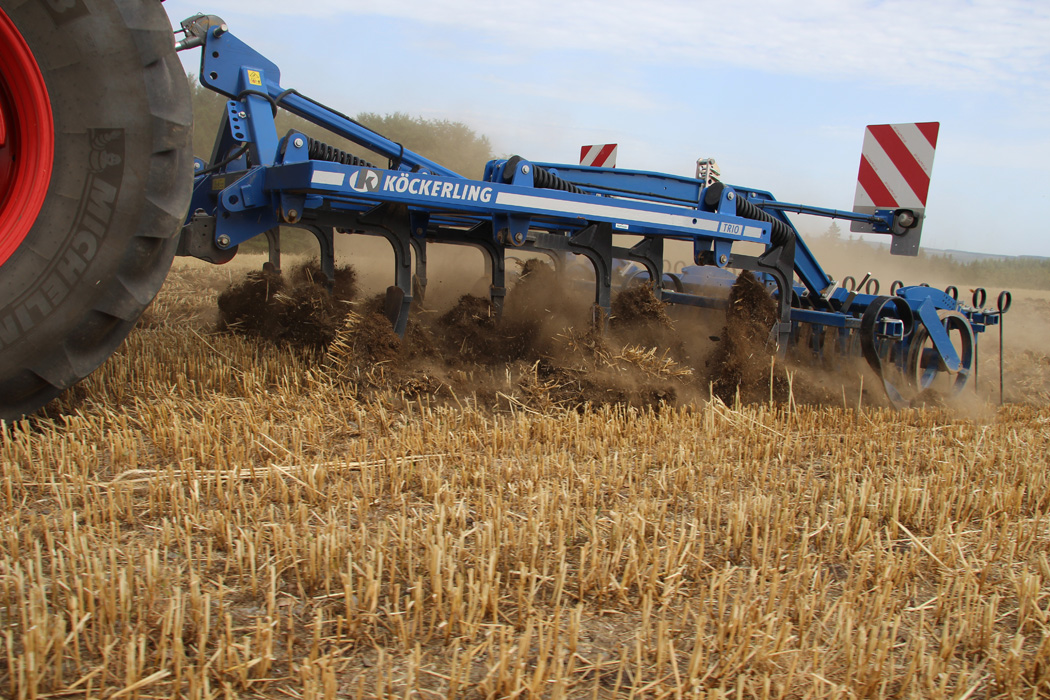

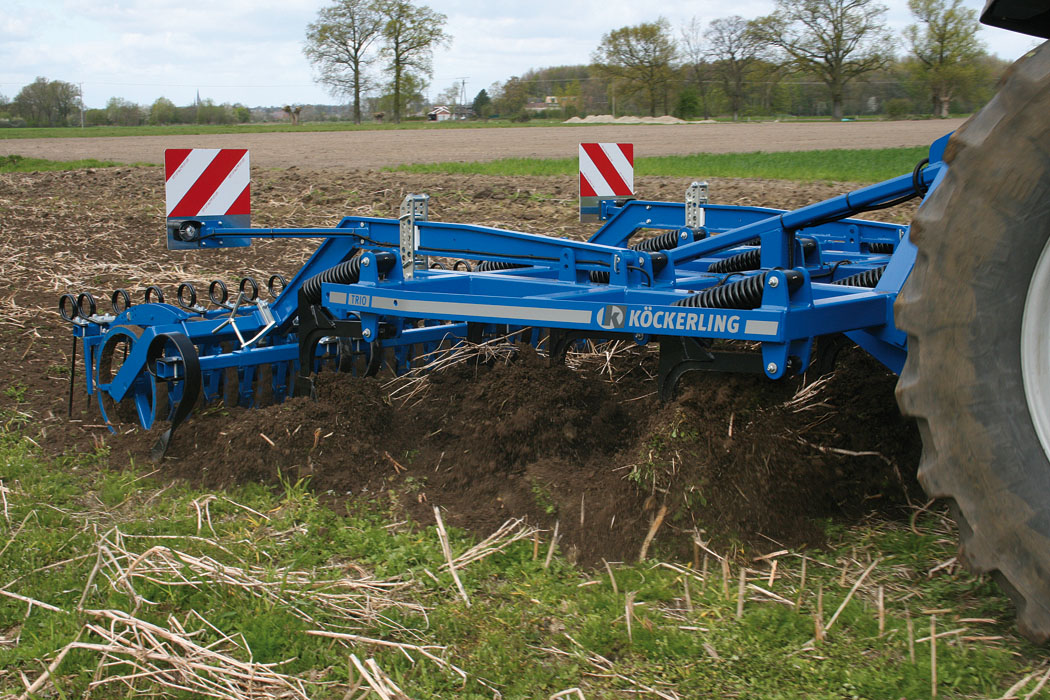

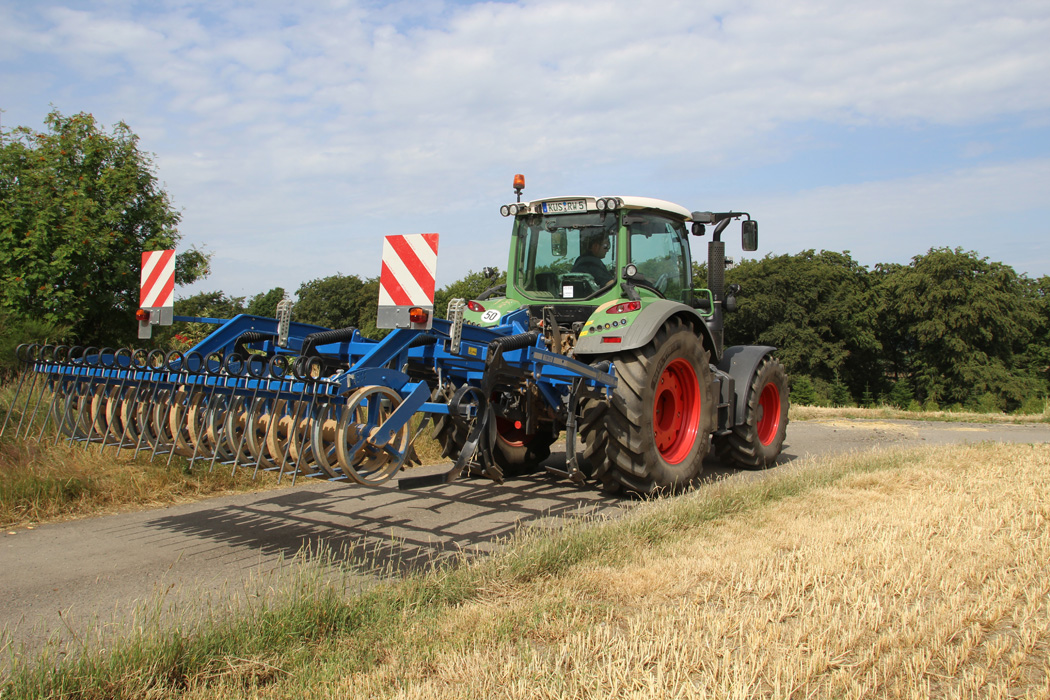

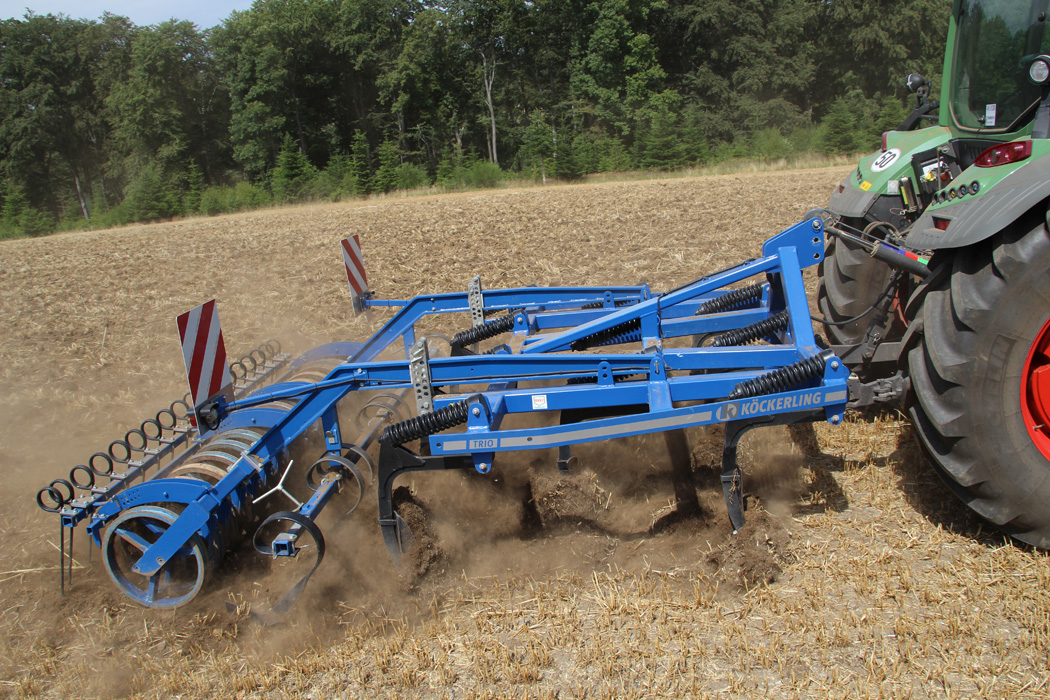

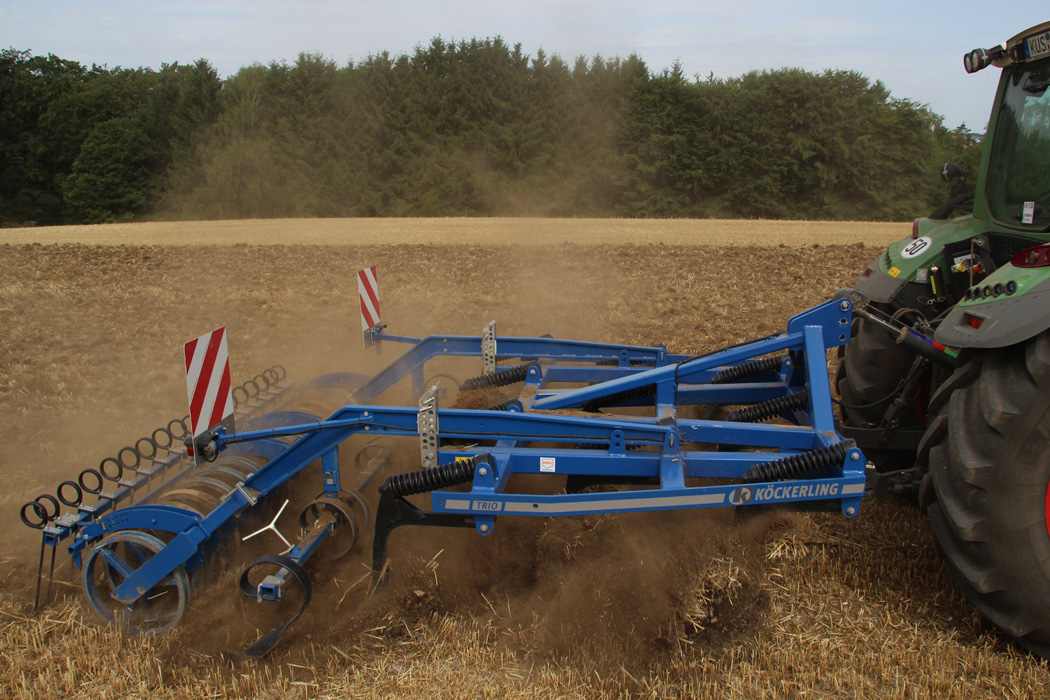

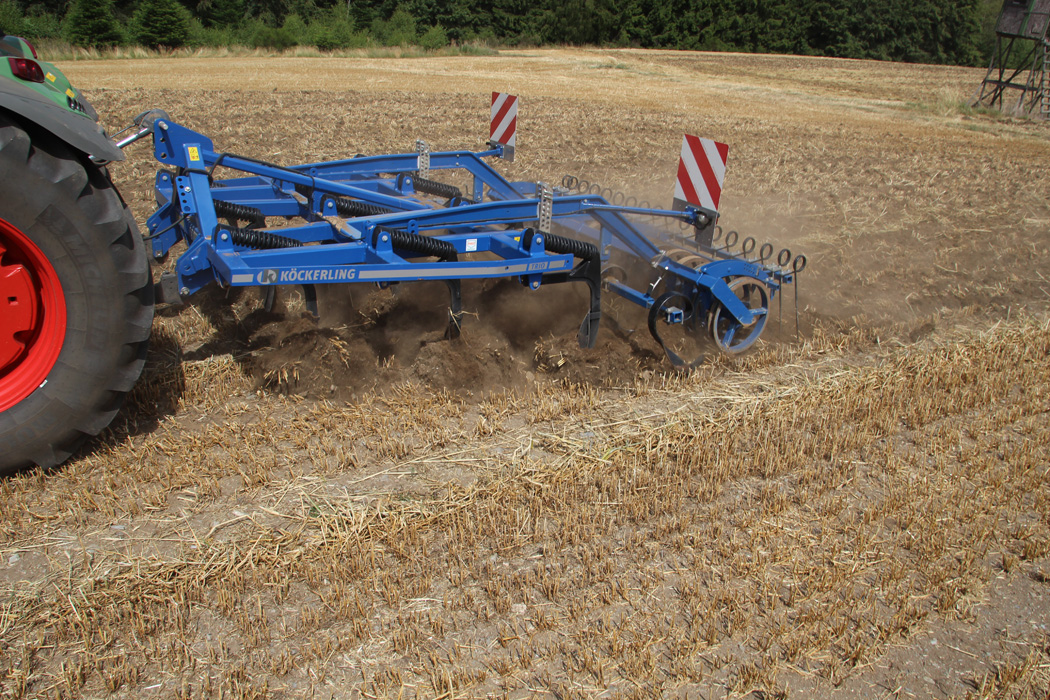

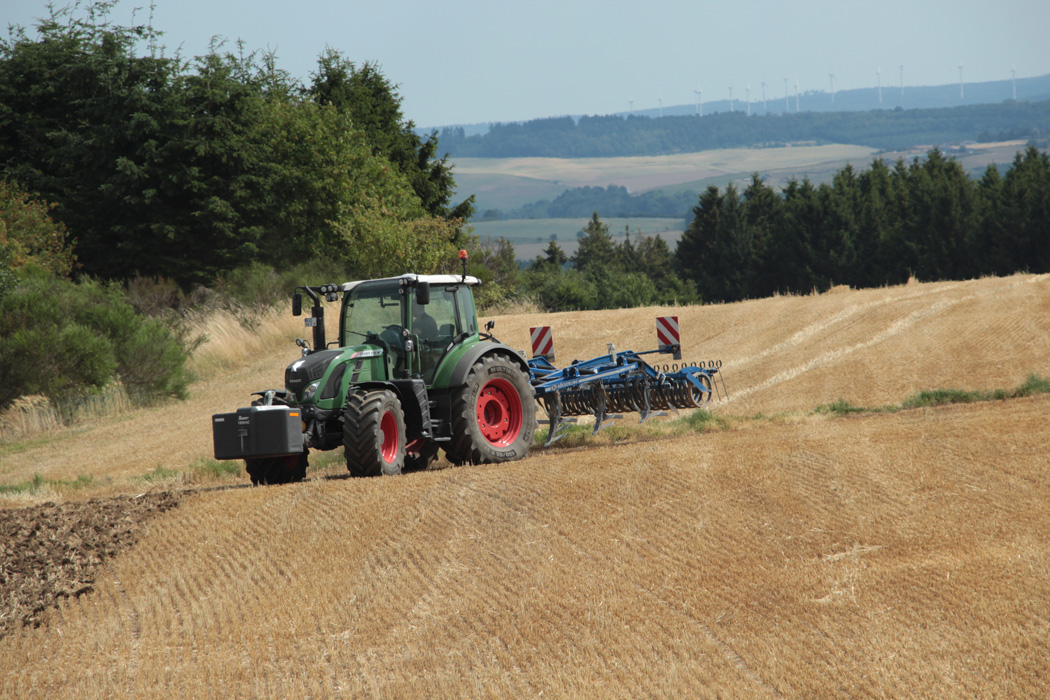

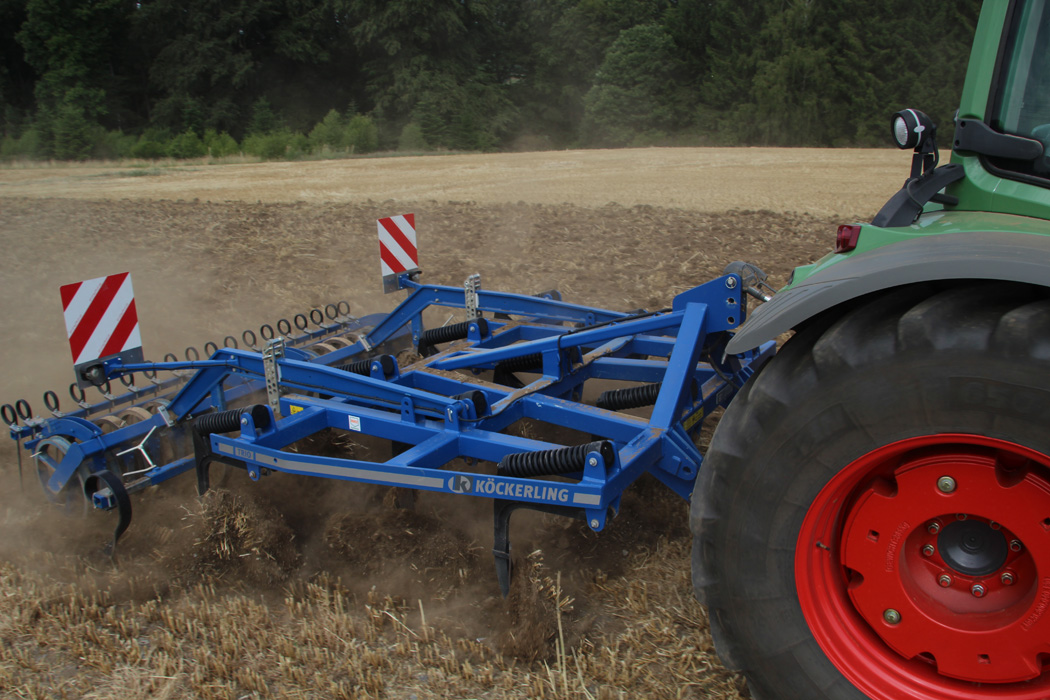

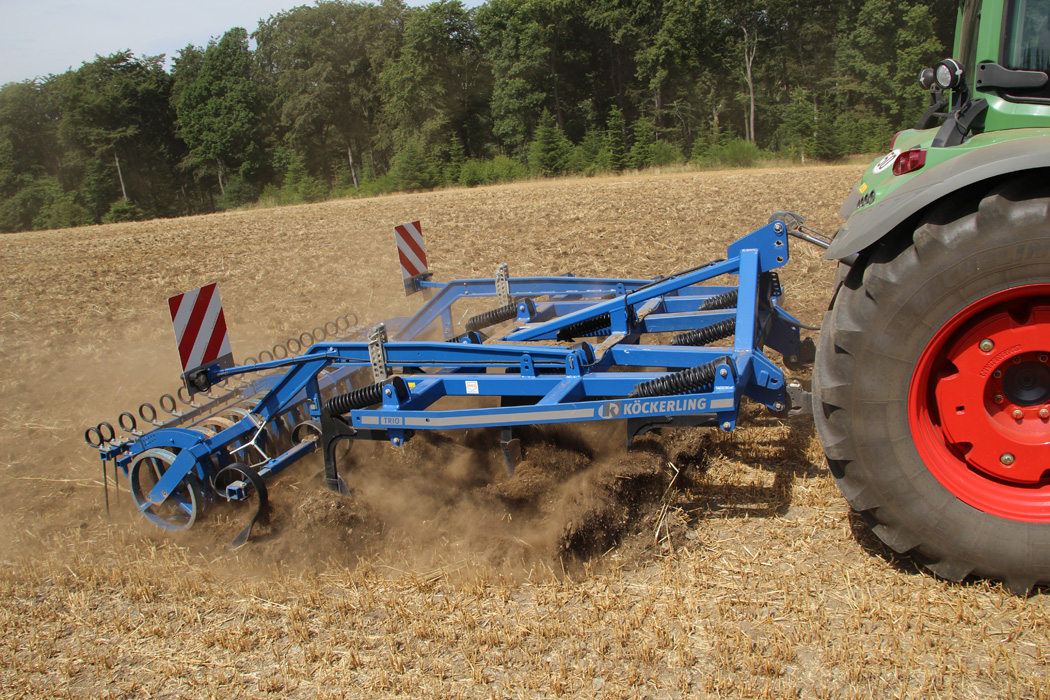

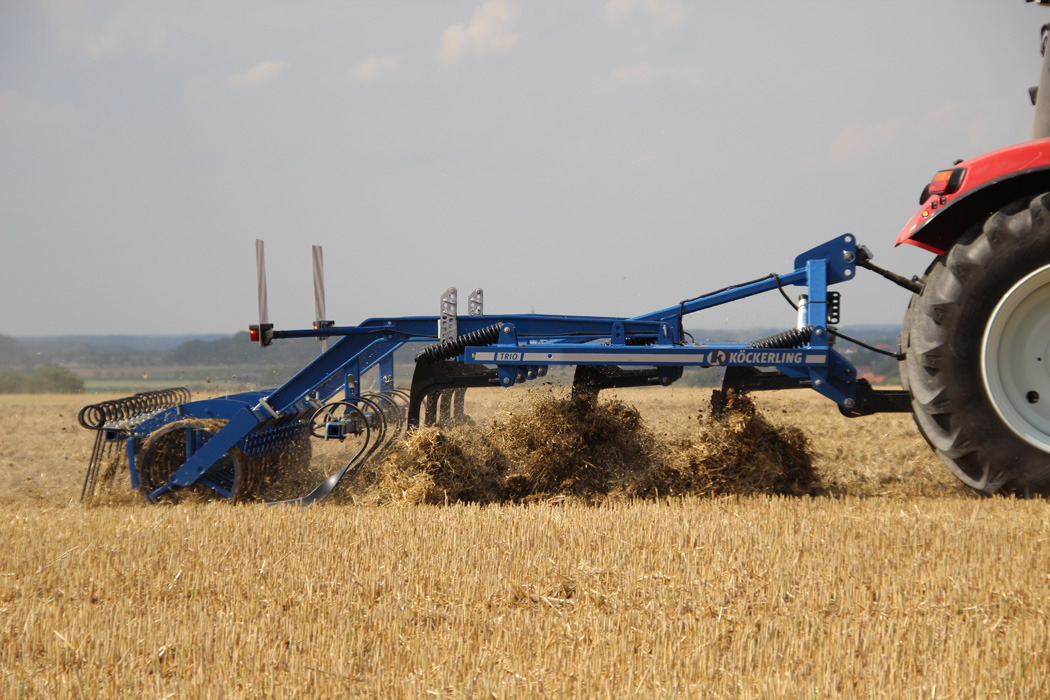

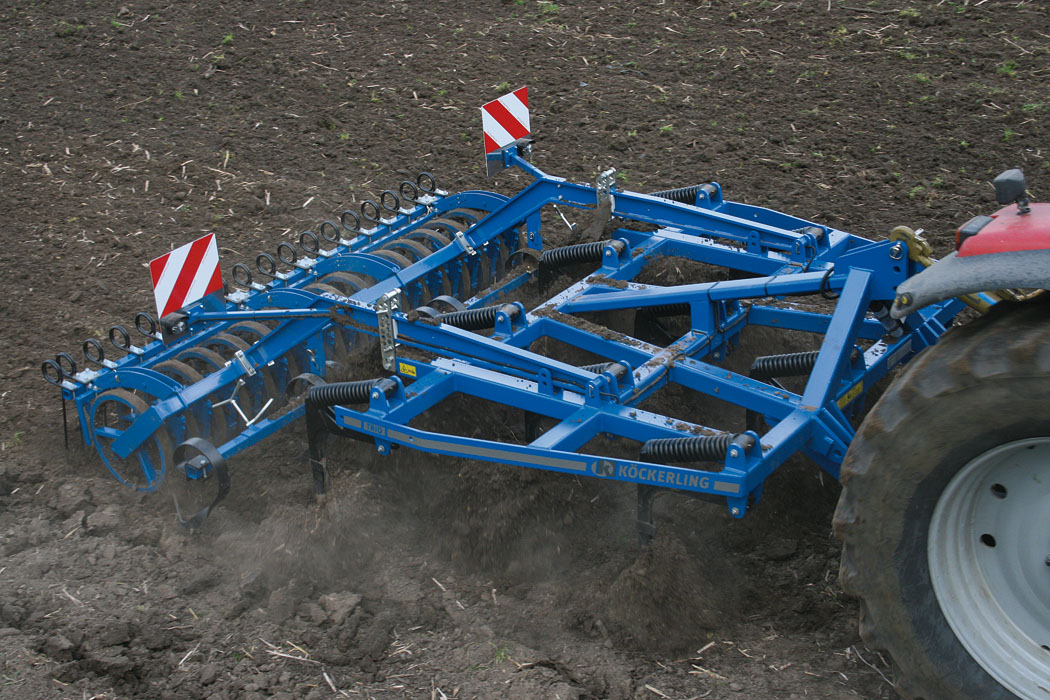

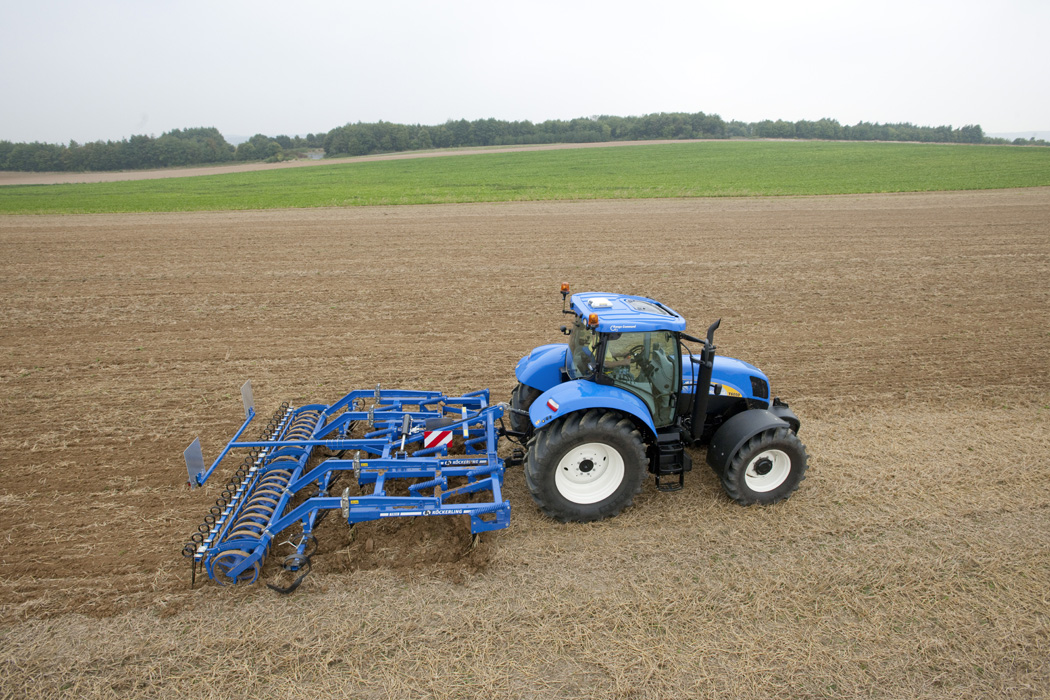

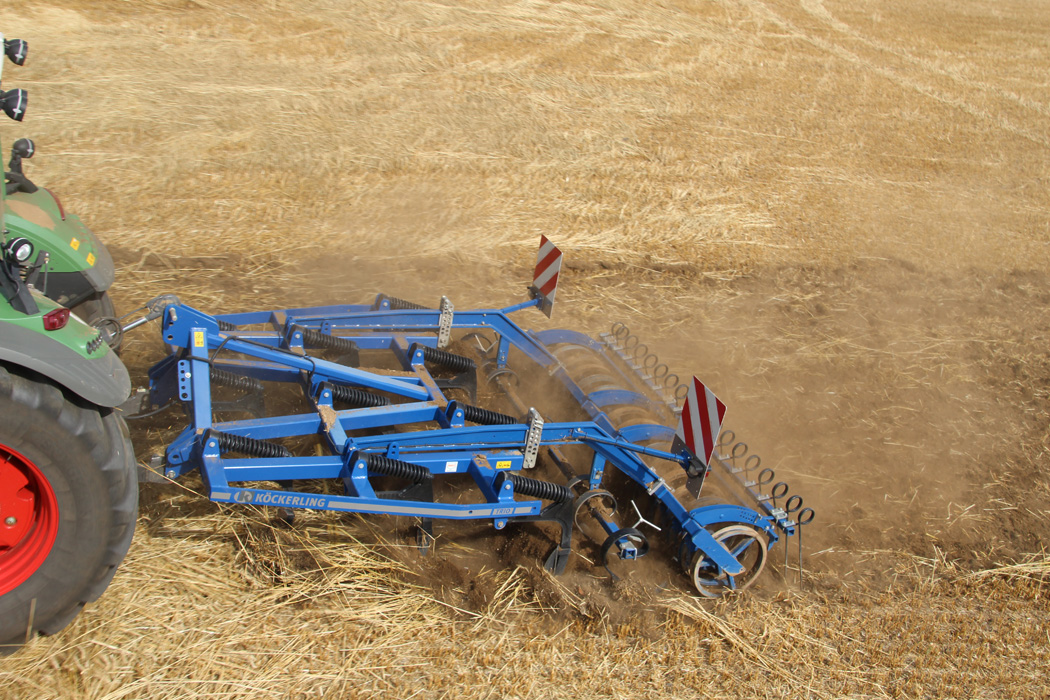

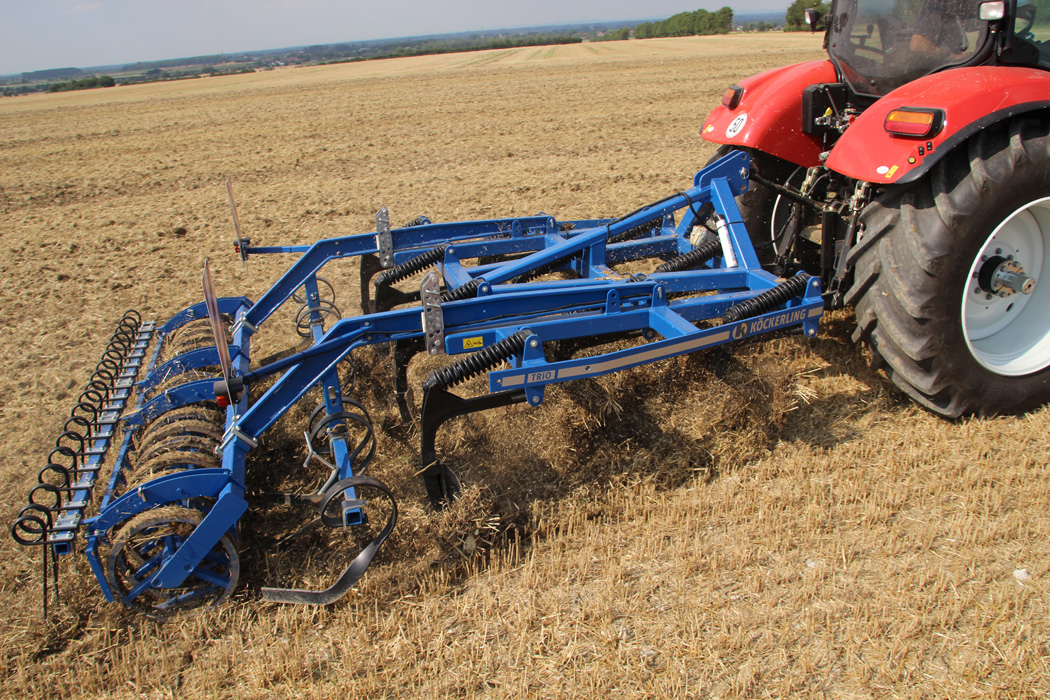

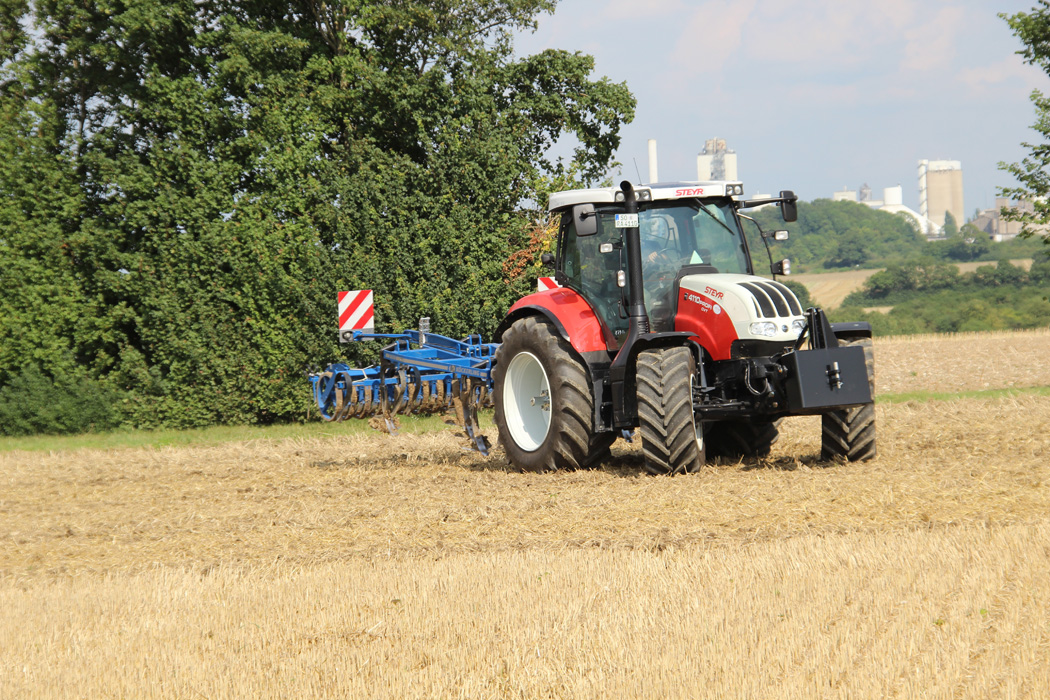

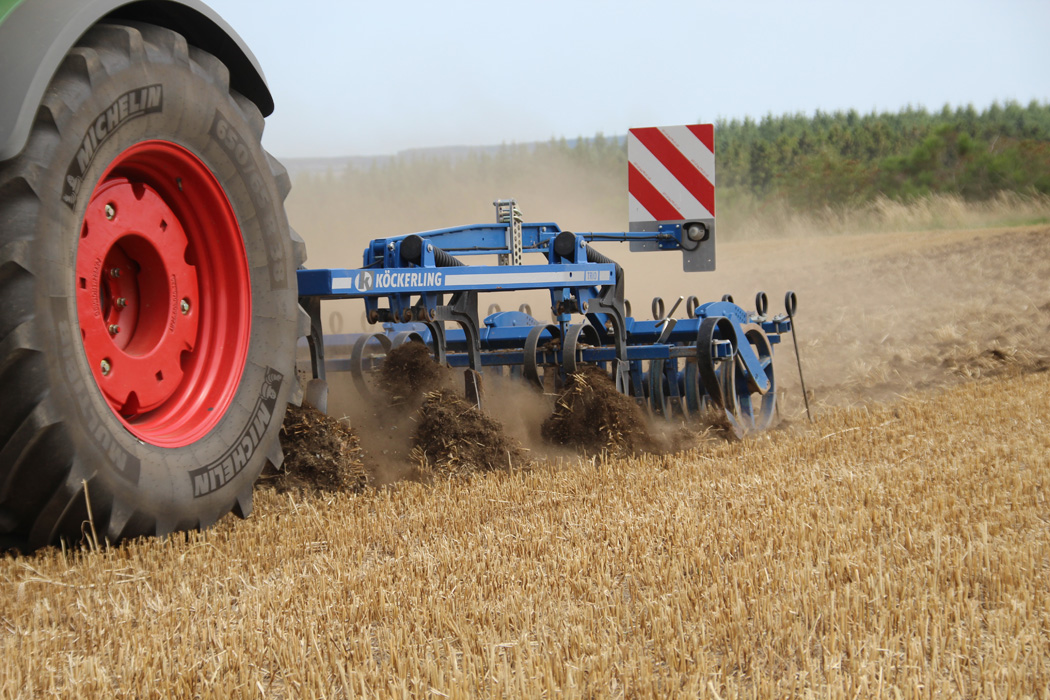

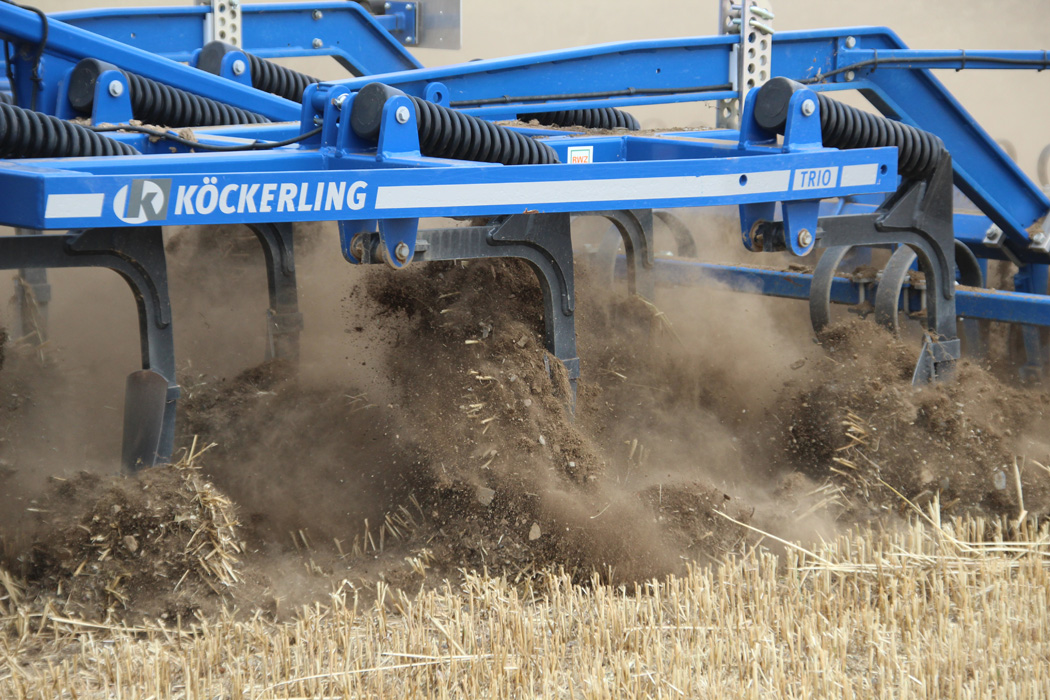

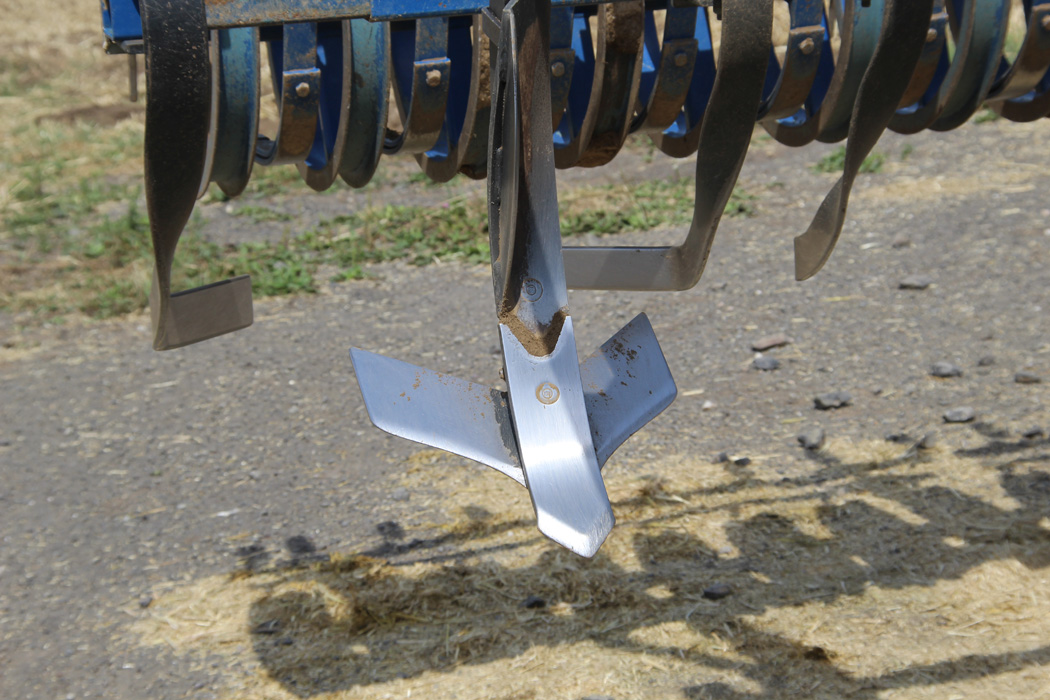

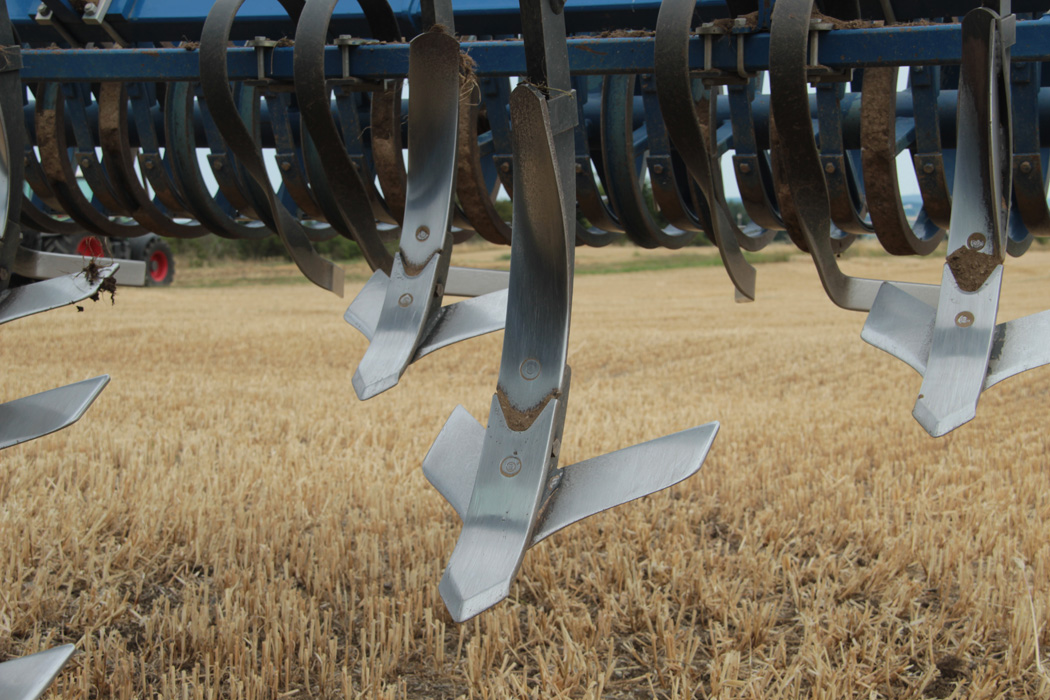

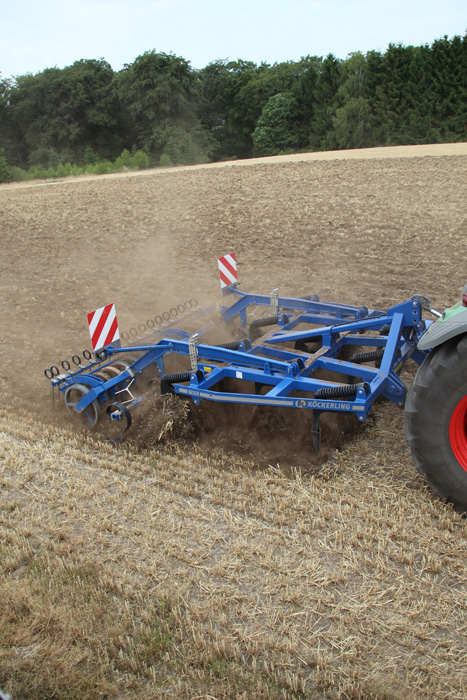

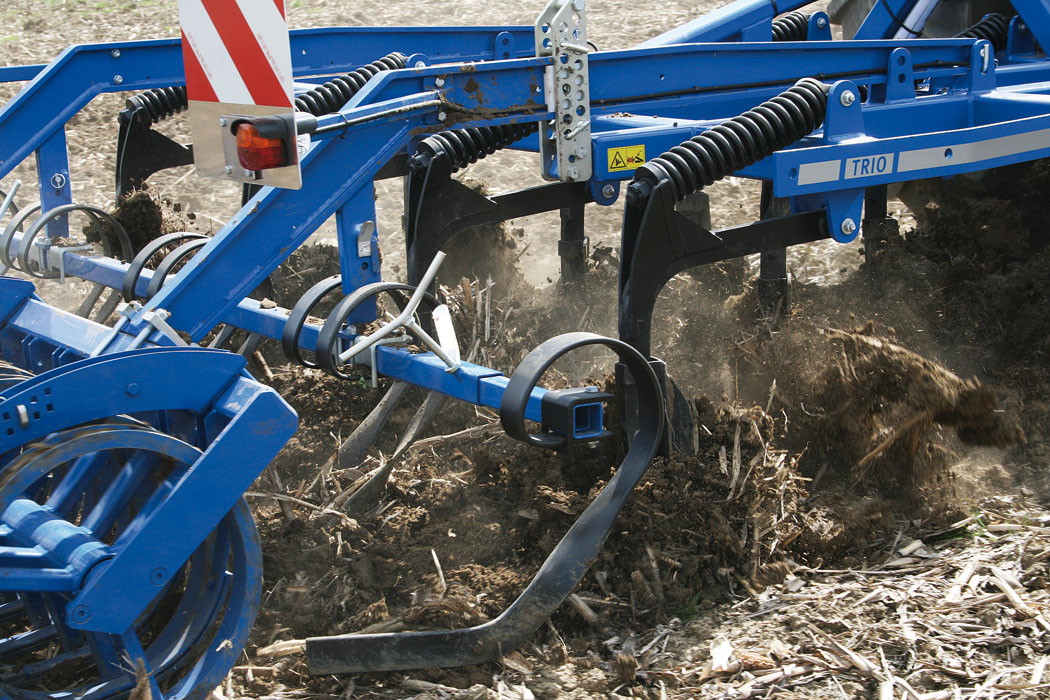

The Trio stubble cultivator is targeted at the smaller and medium sized farms with tractors from 100-160 HP and is three point linkage mounted. The Trio is a compact mounted cultivator for shallow or deep work, it has three tine bars which provide good mixing of post harvest residues. It has a large under beam and inter tine clearance allowing optimum mixing in high trash conditions. The Trio is available with coil spring or shear bolt protection of legs guaranteeing long working life. The front and rear depth control ensures even working, and the rear single or double STS roller creates optimum consolidation.

The Trio Light comes with a 520mm Tube bar crumbler and is ideal for working on light and stone free ground.





TRIO 300

TRIO 350

TRIO 400

Working width



3,00 m

3,50 m

4,00 m

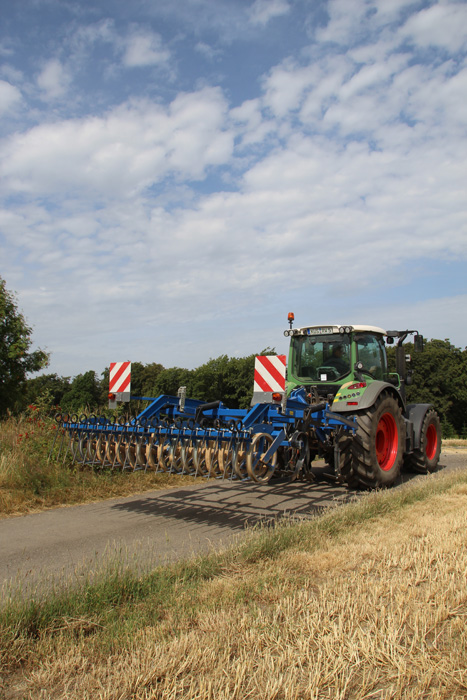

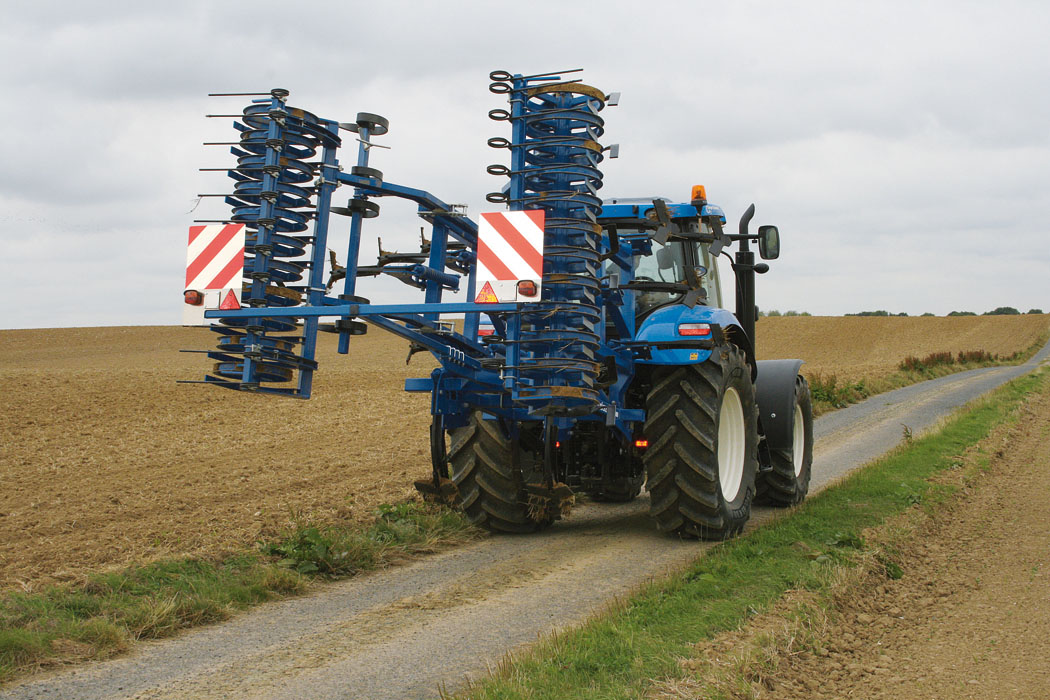

Transport width



3,00 m

3,50 m

3,00 m

Number of tines



10

12

13

Tine spacing



30 cm

30 cm

30 cm

Under frame clearance



85 cm

85 cm

85 cm

Weight



1600 kg

1920 kg

2200 kg

HP requirement



100 HP

120 HP

140 HP
