Tined Weeder AS 600/ 900/ 1200

The Tined Weeder also known as "The Allrounder For the Modern Bio Farm" takes care of all the crucial work. With 6 rows of 7mm tines and with a tine spacing of 31.25mm the main focus of this machine is to combat unwanted weeds. The tines will sweep over the soil and pull out the weeds depositing them on top of the soil surface, they will then wither and die off (approximately 90% of the weed germs are decimated).

Benefits of the Tine Weeder AS:

  • Possibility to mount 6 mm, 7 mm and 8 mm tines
  • 20 mm longer wear tips on the tines - longer service life
  • Greater bend angle of the tines for excellent harrow result
  • Feeler wheels that can be adjusted to the track width

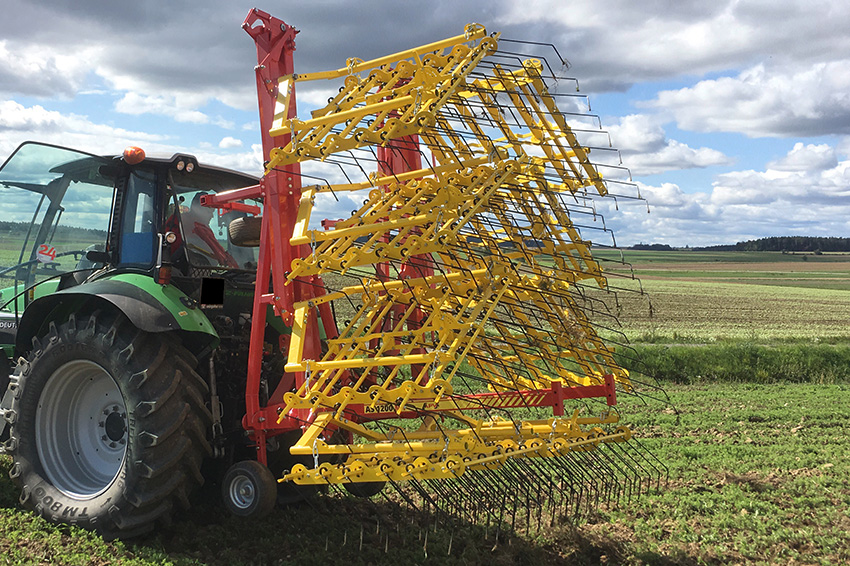

  • Smooth folding due to curve control and longer hydraulic cylinders
  • Lower linkage catch tongue for easier coupling of the harrow
  • Uniform work pattern across 12 m due to the ideal tine spacing of exactly 31.25 mm
  • Easy central tine adjustment per section due to screwless connection
  • Constant ground adaptation of the harrow sections through chain suspension
  • Uniform application of pressure by the forks on the harrow sections on undulating ground due to individual suspensions and lateral compensation of each individual fork
  • Lateral sections are automatically pivoted in due to parallel guidance
  • Independent ground adaptation of each individual section array to ground contours

Items Included:

  • Complete implement with 1.5m wide harrow sections
  • Tines 7mm, 450mm long
  • Parking supports
  • Grab handles on the feeler wheels to adjust height

Technical Data

Tined Weeder AS

Working width

6 m / 9 m / 12 m

Transport dimensions (folded)

H 3.10 m x W 3.00 m x D 2.20 m (AS 600 M1)
H 3.80 m x W 3.00 m x D 2.20 m (AS 900 M1)
H 3.55 m x W 3.00 m x D 2.40 m (AS 1200 M1)

Net weight

500 kg / 850 kg / 1,300 kg

Tine diameter

7 mm

Number of tines per section

48 tines, 450 mm long

Tine spacing

31.25 mm

Mounting category

CAT 2 or CAT 3N

Feeler wheels

2 wheels / 4 wheels / 4 wheels (18.5x8-8“)

Tractor performance

44 kW / 60 HP; 51 kW / 70 HP; 59 kW / 80 HP;


A double-acting control unit required for folding
